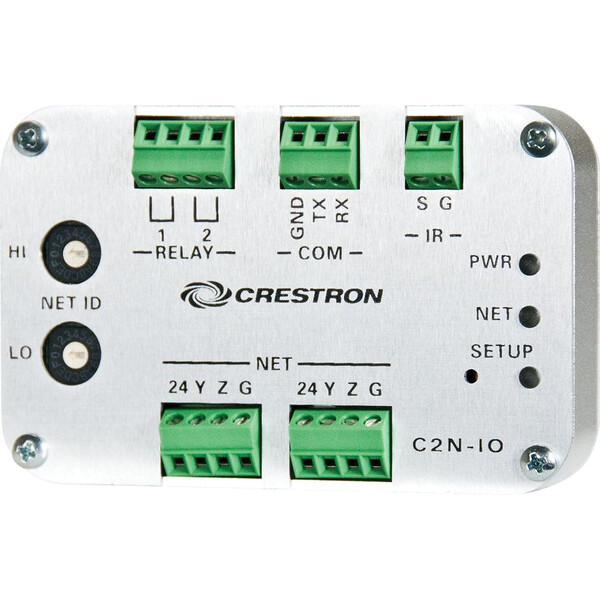

Crestron C2N-IO е модул позволязащ добавянето на портове към система за управление със сензорен екран Crestron® или всяка друга система за управление на Crestron.
| Communications | ||
| Cresnet® Network | Cresnet client mode, 2-Series, 3-Series®, or 4-Series® control system compatible | |
| RS-232 | Supports 2-way device control and monitoring up to 115.2k baud with software handshaking 1 |
|
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 VDC) up to 115.2k baud | |
| Connectors | ||
| RELAY 1 – 2 | (1) 4-pin captive screw terminal block comprising (2) normally open, isolated relays; Rated 1A, 30 VAC/VDC; Solid-state arc suppression across contacts |
|
| COM | (1) 3-pin captive screw terminal block, bidirectional RS-232 port 1; Up to 115.2k baud; software handshaking support |
|
| IR | (1) 2-pin captive screw terminal block, IR/Serial output port; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
|
| NET | (2) 4-pin captive screw terminal blocks, paralleled Cresnet client port, connects to Cresnet control network |
|
| Controls and Indicators | ||
| NET ID | (2) Rotary switches for manually setting Cresnet ID; '00' setting enables touch-settable ID (TSID) |
|
| PWR | (1) Green LED, indicates operating power supplied via Cresnet control network | |
| NET | (1) Amber LED, indicates communication with Cresnet system | |
| SETUP | (1) Red LED and (1) recessed miniature pushbutton for TSID | |
| Power Requirements | ||
| Cresnet Power Usage | 2.5 W (105 mA @ 24 VDC) | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (noncondensing) | |
| Heat Dissipation | 3.5 BTU/hr | |
| Construction | ||
| Metal, freestanding or surface mount, surface mount bracket and 3M® Dual Lock® reclosable fastener included, fits inside a 2-gang electrical box or 2-gang UK (BS 4662) electrical box | ||
| Dimensions | ||
| Height | 2.25 in. (58 mm) | |
| Width | 3.50 in. (89 mm), 4.38 in (112 mm) with bracket | |
| Depth | 0.83 in. (21 mm) | |
